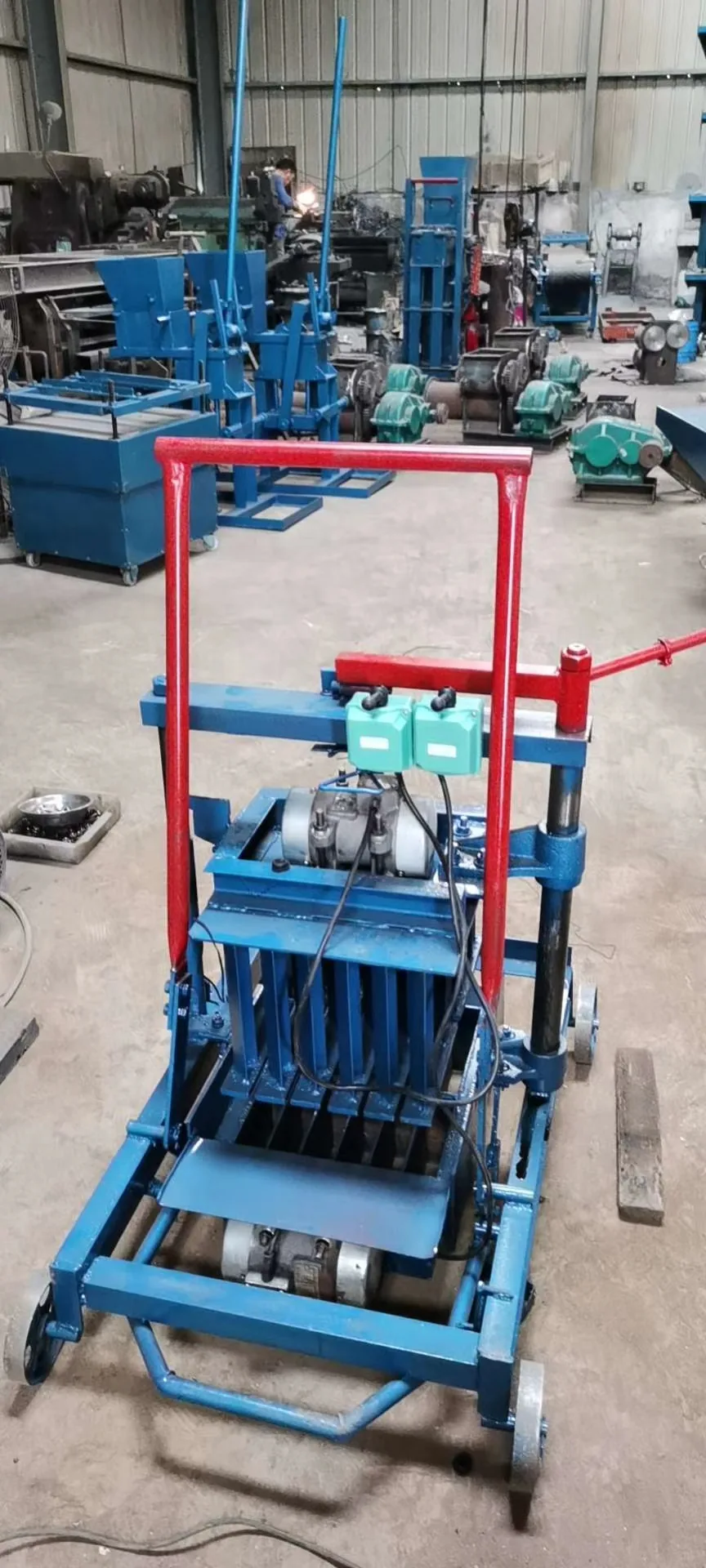

R2-45 Small Mobile Block Making Machine
Entry-level mobile block machine on pneumatic wheels, moulding one block at a time on a 45-second cycle. Suited to small precast yards and on-site production.
Power1.1 kWMoulding cycle45 sWeight200 kg
Indicative priceEXW US$608Ex-works China. Freight, packing and duties are quoted per destination.
Key features
- Moves on pneumatic wheels — mould blocks close to the material stock
- Vibration-motor compaction with a single steel mould box
- Runs on 380 V three-phase or 220 V single-phase supply
- Ships with one mould box; further profiles quoted separately
Quick answer
The R2-45 is the smallest block making machine in the RENFA range: it moulds one block every 45 seconds and turns out about 3,600 standard bricks or 600 hollow blocks in an eight-hour shift. A single 1.1 kW vibration motor drives it, and at 200 kg on pneumatic wheels it can be pulled up to the material stock instead of having material carried to it.
How many blocks does the R2-45 produce per shift?
About 3,600 standard bricks (240 × 53 × 115 mm) or 600 hollow blocks (390 × 190 × 190 mm) in an eight-hour shift, at one block every 45 seconds.
What power supply does the R2-45 need?
Either 380 V three-phase or 220 V single-phase. The machine draws 1.1 kW, so where mains power is available it needs no separate power unit.
Can the R2-45 be moved between sites?
Yes. It weighs 200 kg and rides on pneumatic wheels, so it can be repositioned by hand and used to mould directly on the casting bed. Measuring 900 × 700 × 1,100 mm, it also fits through a normal site gate.
What does the R2-45 cost and what is included?
EXW US$608 including one steel mould box. A customised mould profile for a different block shape is US$225 extra. Freight, packing and duties are quoted per destination.
Specification
Factory figures for the R2-45. Confirm the final configuration on your quotation — options listed here are quoted separately.
R2-45 — technical data
Machine
| Overall size | 900 × 700 × 1,100 mm |
|---|---|
| Power | 1.1 kW |
| Voltage | 380 V / 220 V |
| Moulding cycle | 45 s |
| Machine weight | 200 kg |
Output per shift
| Standard brick 240 × 53 × 115 mm | 3,600 pcs |
|---|---|
| Hollow block 390 × 190 × 190 mm | 600 pcs |
Supply
| Included mould | 1 mould box |
|---|---|
| Customised mould | US$225 |
| Price | EXW US$608 |
Figures are factory data from the manufacturer's specification sheets and catalogue.
Where it is used
- Small precast yards producing blocks for local sale
- On-site block production for housing and boundary-wall projects
- Contractors who need a machine that can be repositioned by hand
