R2-45 Small Mobile Block Making Machine

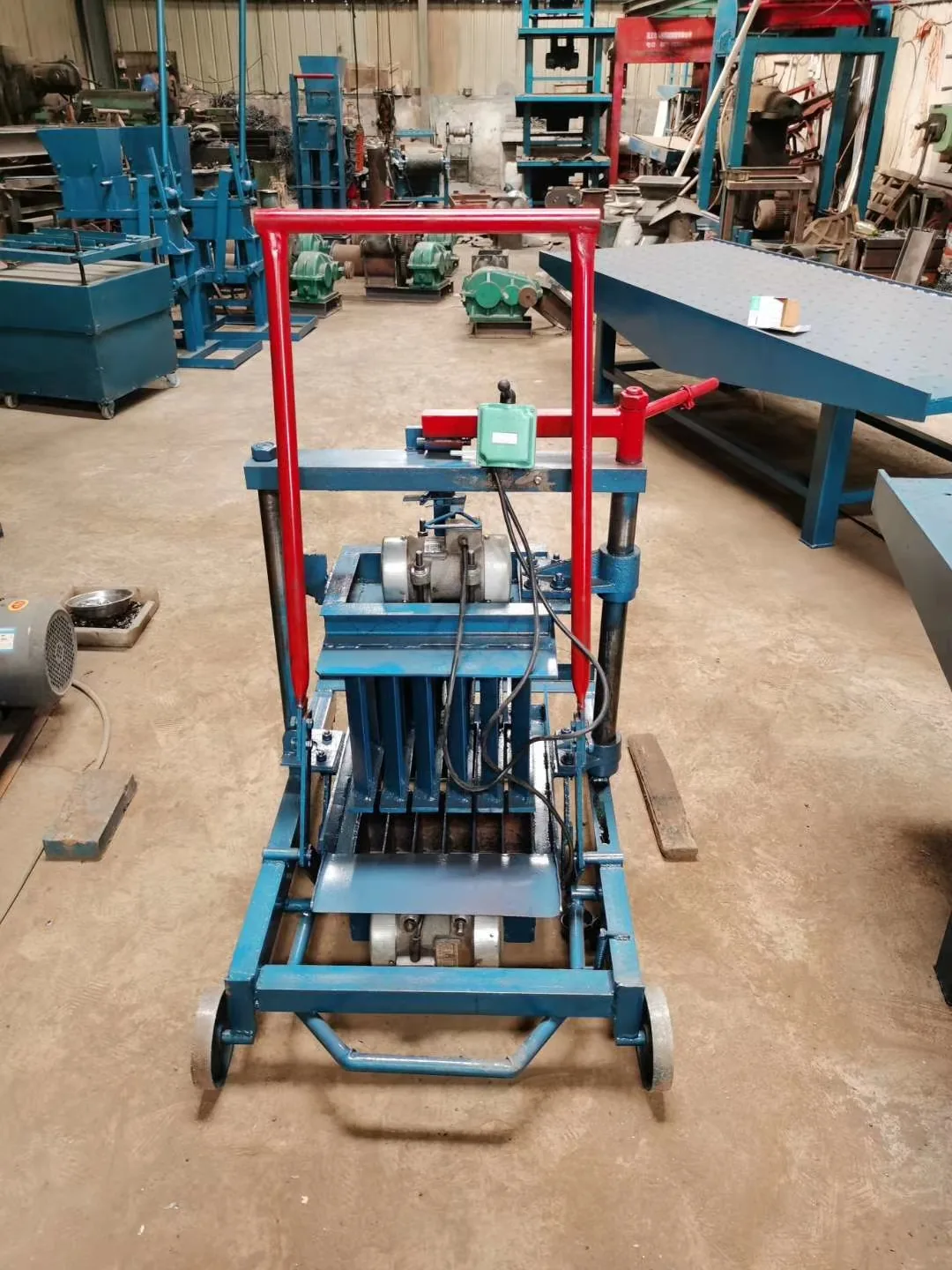

R3-45 Directly Mobile Block Making Machine
Mobile block machine with a larger output than the R2-45 on the same 45-second cycle, for yards that have outgrown an entry-level machine.
Power1.1 kWMoulding cycle45 sWeight300 kg
Indicative priceEXW US$600Ex-works China. Freight, packing and duties are quoted per destination.
Key features
- More than double the standard-brick output of the R2-45 on the same cycle time
- Mobile chassis for direct moulding on the casting bed
- Standard 380 V / 220 V supply, no separate power unit required
- Ships with one mould box; further profiles quoted separately
Quick answer
The R3-45 is the mid-size machine in the 45-second range, producing about 8,000 standard bricks or 1,000 hollow blocks in an eight-hour shift — more than double the output of the R2-45 from the same 1.1 kW drive and the same cycle time. At 300 kg on a mobile chassis it moulds directly on the casting bed.
How many blocks does the R3-45 produce per shift?
About 8,000 standard bricks (240 × 53 × 115 mm) or 1,000 hollow blocks (390 × 190 × 190 mm) in an eight-hour shift, at one block every 45 seconds.
What is the difference between the R2-45 and the R3-45?
Both run a 1.1 kW drive on the same 45-second cycle. The R3-45 is the larger machine at 300 kg against the R2-45 at 200 kg, and that difference shows up as output: roughly 8,000 standard bricks per shift against 3,600, and 1,000 hollow blocks against 600.
Does the R3-45 need a separate power unit?
No. It runs on a standard 380 V three-phase or 220 V single-phase supply at 1.1 kW, with no generator or separate power pack.
What does the R3-45 cost and what is included?
EXW US$600 including one steel mould box. A customised mould profile is US$225 extra.
Specification
Factory figures for the R3-45. Confirm the final configuration on your quotation — options listed here are quoted separately.
R3-45 — technical data
Machine
| Overall size | 1,100 × 1,050 × 1,300 mm |
|---|---|
| Power | 1.1 kW |
| Voltage | 380 V / 220 V |
| Moulding cycle | 45 s |
| Machine weight | 300 kg |
Output per shift
| Standard brick 240 × 53 × 115 mm | 8,000 pcs |
|---|---|
| Hollow block 390 × 190 × 190 mm | 1,000 pcs |
Supply
| Included mould | 1 mould box |
|---|---|
| Customised mould | US$225 |
| Price | EXW US$600 |
Figures are factory data from the manufacturer's specification sheets and catalogue.
Where it is used
- Small to medium precast yards
- Mobile block production at dispersed building sites
- Producing standard bricks and hollow blocks from one machine
Ask a question about this machine
Your enquiry reaches the same person who handles production and loading, in English, the same working day.
